10 Channel Continuous Earth Monitoring System With Resistance Display

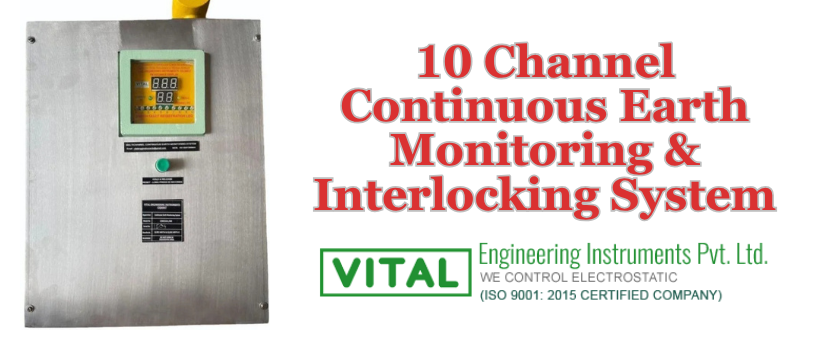

Industrial plants that deal with hazardous materials and electrically sensitive equipment require reliable grounding systems to maintain safety and operational efficiency. The 10 Channel Continuous Earth Monitoring System with Resistance Display is designed to continuously monitor the earthing condition of multiple equipment points in real time. This advanced monitoring system helps industries prevent accidents, equipment damage, and electrical hazards by ensuring proper earth continuity at all times.

Reliable Monitoring for Industrial Safety

In industries such as chemical processing, pharmaceuticals, and manufacturing plants, several machines are connected to a common earthing grid. If any equipment loses proper grounding, it can lead to dangerous situations like sparks, static discharge, or electrical faults. The 10 Channel Continuous Earth Monitoring System with Resistance Display ensures that the earthing status of up to ten different equipment points is monitored continuously.

The system checks each connected equipment at regular intervals and displays the resistance value directly on the panel. If the resistance increases beyond safe limits, the system immediately alerts the operator through visual indicators or alarms. This helps operators quickly identify and fix grounding problems before they lead to serious safety issues. According to the system documentation, the monitoring unit continuously checks each channel every few seconds and indicates whether the earthing condition is healthy or faulty.

Smart Multi-Channel Resistance Monitoring

One of the major advantages of this monitoring system is its ability to monitor multiple channels simultaneously. Instead of checking earthing manually, the system automatically measures the resistance of each connected equipment and displays the readings.

Each channel has an individual relay interlock that becomes active when the equipment has proper earth connectivity. When the system detects an unhealthy condition, the fault registration LED glows and the hooter alerts nearby operators for immediate attention.

The resistance threshold is typically set to indicate a healthy earth when the resistance is below 10 ohms, while a higher value indicates a problem that needs to be addressed. This intelligent monitoring approach improves operational safety and reduces downtime caused by grounding failures.

Wide Industrial Applications

The 10 Channel Continuous Earth Monitoring System with Resistance Display is suitable for various industrial processes where static electricity or poor earthing can cause serious hazards. It is commonly used in environments that involve explosive solvents, dust, or flammable materials.

Typical applications include:

Reactor vessels and multiple process reactors

Liquid or powder mixing systems

Drum and container filling stations

Powder conveying systems

Fluid bed drying equipment

Dust collectors and industrial hoppers

These systems are often installed near plant equipment so operators can easily identify which channel is experiencing grounding issues.

Advanced Design and Performance

The monitoring system is designed with high-quality components to ensure reliable performance in harsh industrial environments. It operates on a 230V AC supply and uses an intrinsically safe monitoring circuit with isolated power output. The enclosure is typically made from cast aluminum alloy with IP65 protection, making it suitable for hazardous or outdoor conditions.

Key technical highlights include:

10 potential free relay outputs for interlocking

Resistance display for individual equipment

Fault registration LED indication

Optional hooter interface for alarms

Operating temperature range from -10°C to 55°C

By integrating real-time monitoring, resistance display, and automatic fault detection, the 10 Channel Continuous Earth Monitoring System with Resistance Display provides industries with a reliable solution for maintaining electrical safety and equipment protection.

Conclusion

Maintaining proper earthing in industrial environments is critical for preventing electrical hazards and ensuring worker safety. The 10 Channel Continuous Earth Monitoring System with Resistance Display offers a smart and efficient way to monitor multiple grounding points simultaneously. With continuous resistance monitoring, automatic alerts, and durable construction, it helps industries maintain safe operations while reducing the risk of equipment failure and accidents.
