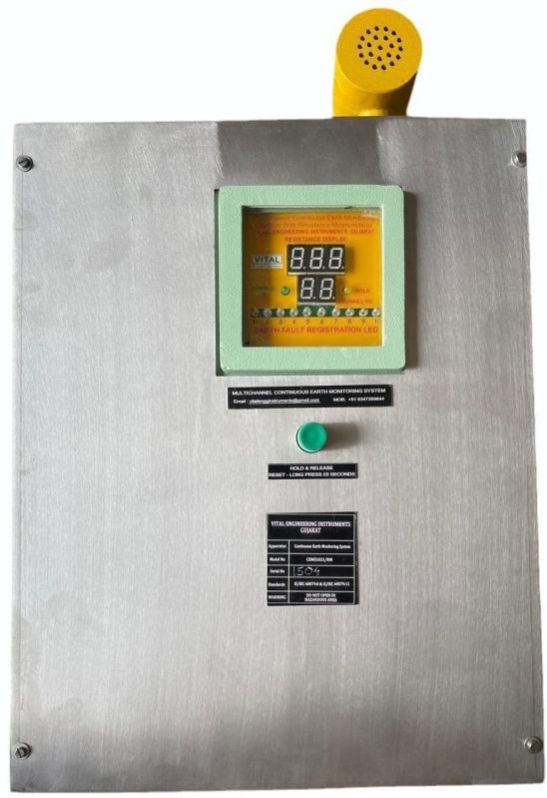

Continuous Earth Monitoring System

The Multi Channel Earthing system is designed to discharge all the static charge to ground once it makes the positive connection to all the connected equipments

The System will monitor the resistance between the equipment body and earth for <10 ohms and it will automatically shut down the process if resistance increases beyond 10 ohms or there is discontinuity in the ground connection (Interlocks Provided Optional)

The System has also facility to adjustable Monitoring resistance

The System has an additional feature that it displays Individual Channel Earth Resistance with respect to ground in Ohms on Screen along with Green & Red Earth Status Indication.

The System is available in following Models

1. 05 Channel Continuous Earth Monitoring system (Individual Interlock)
2. 08 Channel Continuous Earth Monitoring system (Individual Interlock)
3. 10 Channel Continuous Earth Monitoring system (Individual Interlock)

Application : To Earth & Monitor upto 10 Multiple Equipments like Drums, Tankers, Reactors, FDB, Sifters, Hoppers etc..

Certified as Per:

Certifications - CIMFR / PESO (Optional)- FLP Certified & IP 66

Complying to Standards : IS/IEC 60079-0:2007, IS/IEC 60079-11:2006

The Multi Channel Earthing system is designed to discharge all the static charge to ground once it makes the positive connection to all the connected equipments

The System will monitor the resistance between the equipment body and earth for <10 ohms and it will automatically shut down the process if resistance increases beyond 10 ohms or there is discontinuity in the ground connection (Interlocks Provided Optional)

The System has also facility to adjustable Monitoring resistance

The System has an additional feature that it displays Individual Channel Earth Resistance with respect to ground in Ohms on Screen along with Green & Red Earth Status Indication.

Application : To Earth & Monitor upto 20 Multiple Equipments like Drums, Tankers, Reactors, FDB, Sifters, Hoppers etc..

Certified as Per:

Certifications - CIMFR / PESO (Optional)- FLP Certified & IP 66

Complying to Standards : IS/IEC 60079-0:2007, IS/IEC 60079-11:2006

Continuous Earth Monitoring System CEMS-20/RM/0521 II 20 Channel Continuous Earth Monitoring System II  Multi Channel Continuous Earth Monitoring System II  Multi Channel Earth Loop Monitoring System II 20 Channel II  CEMS 2021 II VITAL ENGINEERING INSTRUMENTS II
Continuous Earth Monitoring System (CEMS - 0313)
Continuous Earth Monitoring System CEMS-20/RM/0521

The process of filling inflammable liquids for transportation or storage, safety standards and procedures must ensure that the static voltage which occurs during this process, should not lead to an explosion. To handle this static voltage, the vehicle or the container should be properly earthed. This is important so that the static voltage does not build up to a dangerous flash point . The Earthing method should be proper and perfect, otherwise dangerous losses can take place


WORKING PRINCIPLE
THE System should be used to monitor the earthing of the vehicle, static equipments, once connected it shows the actual earthing status with GREEN & RED IndicationGREEN INDICATION – HEALTHY EARTH - Loading / Unloading Process should Start or it gets automatically started through relay contactsRED INDICATION – UNHEALTHY EARTH Loading / Unloading Process should stop or it gets automatically stopped through relay contacts

Extra Features Like Resistance Display, Hooter, Adjustable Monitoring Resistance availble (Optional)

FLP/WP Advanced Continuous Earthing Monitoring System with Hooter
We are engaged in offering this product to our clients. Our range of all products is widely appreciated by our clients.

The process of filling inflammable liquids for transportation or storage, safety standards and procedures must ensure that the static voltage which occurs during this process, should not lead to an explosion. To handle this static voltage, the vehicle or the container should be properly earthed. This is important so that the static voltage does not build up to a dangerous flash point . The Earthing method should be proper and perfect, otherwise dangerous losses can take place


WORKING PRINCIPLE
THE System should be used to monitor the earthing of the vehicle, static equipments, once connected it shows the actual earthing status with GREEN & RED IndicationGREEN INDICATION – HEALTHY EARTH - Loading / Unloading Process should Start or it gets automatically started through relay contactsRED INDICATION – UNHEALTHY EARTH Loading / Unloading Process should stop or it gets automatically stopped through relay contacts

Extra Features Like Resistance Display, Hooter, Adjustable Monitoring Resistance availble (Optional)

Equipment Earth Monitoring System
We are engaged in offering this product to our clients. Our range of all products is widely appreciated by our clients.

Advanced Tanker / Drum Static Earthing & Gronding System
The Tanker earthing system With adjustable monitoring resisatnce is designed to discharge all the static charge to ground once it makes the positive Connection to the tanker body. The System will monitor the resistance between the tanker body and earth for <10 ohms and it will automatically shut down the process if resistance increases beyond 10 ohms or if there is discontinuity in the ground connection.
Certified as Per:
IS/IEC 60079-0:2007
IS/IEC 60079-11:2006
IS/IEC 60529:2001
Marking on Equipment:

Ex d[ib] IIb T6 Gb (-10 to <Ta< +50)

Modes Of Operation

• Road tanker identification – the processes of loading or unloading of a road tanker are only possible if the system:
• It has been attached to a road tanker and not to another structure or metal object,
• It has been connected to the vehicle’s component that allows electrostatic charges to be discharged from the tanker tank.
• Earth electrode verification – checking if the earth electrode (e.g. steel tape) ensures fast and safe dissipation of electric charges to the ground.
• Continuous monitoring of the connection between the road tanker and the ground – if the connection is lost (loose clasp, damaged pipes, etc.), the tanker loading/ unloading process will be blocked.
