Smart Ground Detector

The process of filling inflammable liquids for transportation or storage, safety standards and procedures must ensure that the static voltage which occurs during this process, should not lead to an explosion. To handle this static voltage, the vehicle or the container should be properly earthed. This is important so that the static voltage does not build up to a dangerous flash point . The Earthing method should be proper and perfect, otherwise dangerous losses can take place


WORKING PRINCIPLE

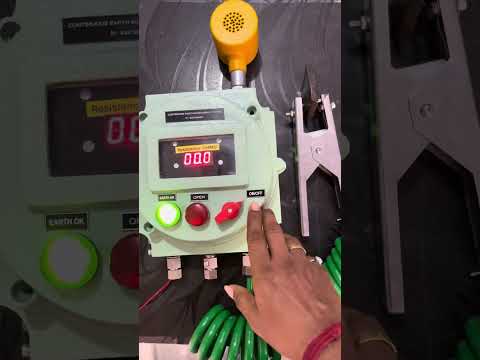

THE System should be used to monitor the earthing of the vehicle, static equipments, once connected it shows the actual earthing status with GREEN & RED IndicationGREEN INDICATION – HEALTHY EARTH - Loading / Unloading Process should Start or it gets automatically started through relay contactsRED INDICATION – UNHEALTHY EARTH Loading / Unloading Process should stop or it gets automatically stopped through relay contacts

Extra Features Like Resistance Display, Hooter, Adjustable Monitoring Resistance availble (Optional)
