Human Body Static Dissipator
Leading Manufacturers, Exporters and Wholesaler of Human Body Static Discharge Unit (PESO), HUMAN BODY STATIC DISSIPATER, VITAL Human Body Static Discharge Device and VITAL Human Body Static Dissipator LAMP Model from Vadodara.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | VITAL |
| Material | Aluminium |
| Application | Human Body Static Grounding |
| Feature | Corrosion Proof,Excellent Quality,Fine Finishing,Flawless Finish,High Quality,High Strength,Perfect Shape,Sturdy Design |
| Type | Grounding Systems |
| Country of Origin | India |
| Product Code | VITALHBSD |
| Port | INDIA |
| Delivery Time | 1 Week |
| Packaging Details | Corrugated Box |
Preferred Buyer From
| Location | Worldwide |

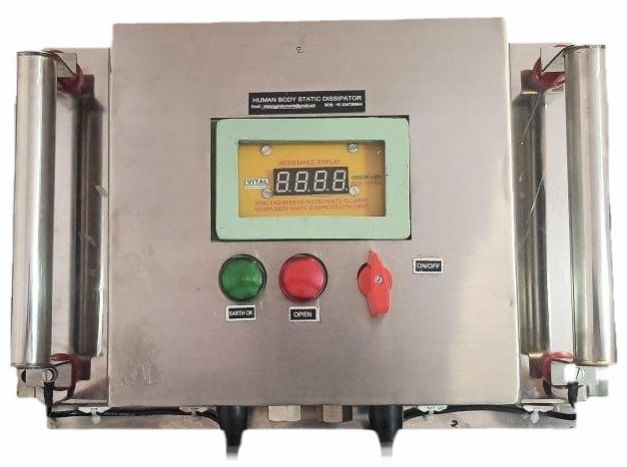

INTRINSICALLY SAFE - Vital Human Body Static Dissipator with LAMP & Resistance Display Indication
We are engaged in offering this product to our clients. Our range Includes Human Body Static Dissipator for Discharging Static Electricity from Human Body.
By Grabbing the Touch Handles of the system the person can discharrge his/her body completely , Green Indication will light up upon Sucessful Static Discharge of the human Body
Available in Gas Group IIA IIB IIC CIMFR / PESO
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.
Operation Principle
Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending on the measured value of resistance. It also provides path for static charge of the human body to discharge to earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output contact is available which can be used for annunciation or interlock with the access door or gate to restrict entry of people only after static charge dissipation.
| Business Type | Manufacturer |
| Brand Name | VITAL |
| Material | Aluminium |
| Condition | New |
| Application | Human Body Static Discharge & Grounding |
| Voltage | 220v |
| Type | Static Charge Eliminator |
| Country of Origin | India |
Preferred Buyer From
| Location | Worldwide |

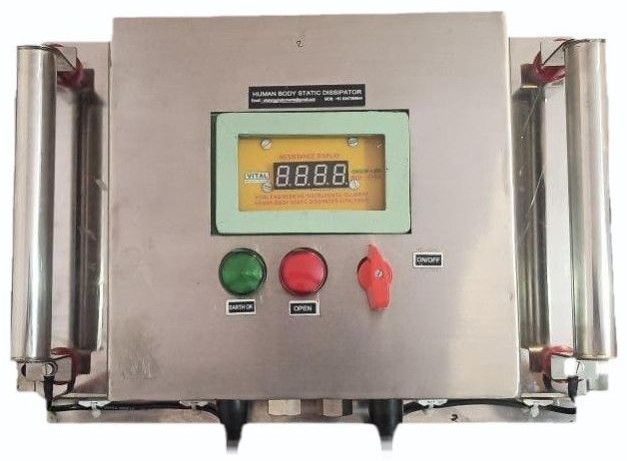

Human Body Static Dissipator
To discharge the static charge developed in human body to the ground, human body static dissipator provides
complete solution, by measuring the resistance of human body and providing conductive path for static charge
dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of
spark generated due to static discharge, prior to entering into hazardous area.
Operation Principle
Human body static dissipator measures the resistance of human body and displays ‘Pass or Open’ depending
on the measured value of resistance. It also provides path for static charge of the human body to discharge to
earth. When human body has static charge, the resistance is typically above 1 Mega Ohm. When the human
body is discharged the resistance falls below 1 Mega Ohm. When the resistance is above 1 Mega Ohm, the
device displays ‘Open’. When the resistance is below 1 Mega ohm, the device displays ‘Pass’. A relay output
contact is available which can be used for annunciation or interlock with the access door or gate to restrict
entry of people only after static charge dissipation.
Technical specification
Power supply - FLP 230 V AC
Type of Ex protection Ex”d”
Temperature Class T4/T6
Interlock contact YES – 02 NO/NC
Display Resistance Display
LAMP Green – Healthy Discharge
Red – OPEN or Not Discharged
Present resistance value 750K-1 M ohm
Mounting Wall mounting
Handles Test & Ref. Ground handle/Plate – SS304
Power On/Off switch 06 Amp
General Flame Proof Enclosure Specifications
Flame proof (Explosion proof) Ex-d
Area Classification Zone 1 & 2
Gas Groups IIA IB IIC(Optional)
Material Touch handles SS304, SS316(Optional)
Temperature Class T6 (85 deg.C)
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | VITAL |
| Material | Aluminium |
| Application | Human Body Static Earthing |
| Certification | CE Certified |
| Type | Human Body Voltage Checker, Human Body Static Discharge |
| Country of Origin | India |
| Model Number | VITALHBSD |
Preferred Buyer From
| Location | Worldwide |
Vital Human Body Static Dissipater.
To discharge the static charge developed in human body to the ground, human body static dissipator provides complete solution, by measuring the resistance of human body and providing conductive path for static charge dissipation to earth. It ensures that, the human body resistance is below 1000K Ohms and safe from risk of spark generated due to static discharge, prior to entering into hazardous area.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | VITAL,Vital |
| Material | CAST IRO LM |
| Application | Human Body Earthing |
| Type | Human Body Static Dissipator - LAMP Model |
| Model | VITALHBSD |
| Max Test voltage | 1.5 V DC |
| Power Supply | 230 V AC FLP |
Preferred Buyer From
| Location | Worldwide |
Vital Human Body Static Dissipator wit LAMP Indication
We are engaged in offering this product to our clients. Our range of all products is widely appreciated by our clients.
